Accueil > Brushless Motor, Fan>GForce Supersonic 3.5 T Brushless Motor
GForce Supersonic 3.5 T Brushless Motor Agrandir

GForce Supersonic 3.5 T Brushless Motor

GF-G0049

3.5 T

Plus de détails

GF-G0049

2 pièces disponibles

CHF 59.90

En solde En solde !

-CHF 12.10

CHF 72.00

Aucun point de fidélité pour ce produit car il y a déjà une réduction.


Features

Breakthrough the Blushless motor

  • CNC Machined Billet T6 Aluminum Heatsink Can
  • High Purity Copper Windings Maximizes Conductivity
  • High Power Solder Tabs
  • Removable/Replaceable Rotor
  • Powerful Sintered Neodymium Magnet
  • Precision Engineered for Maximum Energy Conversion

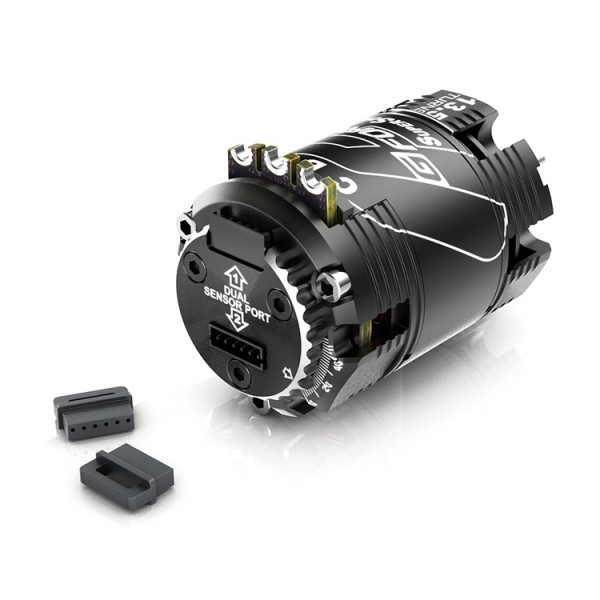

  • Dual Sensor Port
  • Incorporate Radial Fan in Front End Bell
  • Adjustable Timing
  • Compatible with any Sensored/ Sensorless ESC
  • IFMAR, ROAR Compliance




Specifications

TurnsRotor (mm)KV (RPM/VCLT)Internal ResistanceVoltageWatts (W)
3.5T12.5*5(mm)91000.0026Ω7.4V600
4.5T12.5*5(mm)76200.0042Ω7.4V490
5.5T12.5*5(mm)64500.0061Ω7.4V430
6.5T12.5*5(mm)53500.0087Ω7.4V390
7.5T12.5*5(mm)47000.0104Ω7.4V360
8.5T12.5*5(mm)41000.0138Ω11.1V340
10.5T12.5*5(mm)34500.0208Ω11.1V250
13.5T12.5*5(mm)28600.0331Ω11.1V190
17.5T12.5*7.2(mm)22000.0514Ω11.1V130
21.5T12.5*7.2(mm)17600.0875Ω11.1V100

Bearing Size

 F bearing sizeR bearing size
Super Sonic685ZZ(￠5*￠11*5mm)R2ZZ(￠3.175*￠9.525*3.967mm)
Super VelocityR2ZZ(￠3.175*￠9.525*3.967mm)R2ZZ(￠3.175*￠9.525*3.967mm)
Super FastR2ZZ(￠3.175*￠9.525*3.967mm)R2ZZ(￠3.175*￠9.525*3.967mm)
FujinR2ZZ(￠3.175*￠9.525*3.967mm)R2ZZ(￠3.175*￠9.525*3.967mm)
RaijinR2ZZ(￠3.175*￠9.525*3.967mm)R2ZZ(￠3.175*￠9.525*3.967mm)
