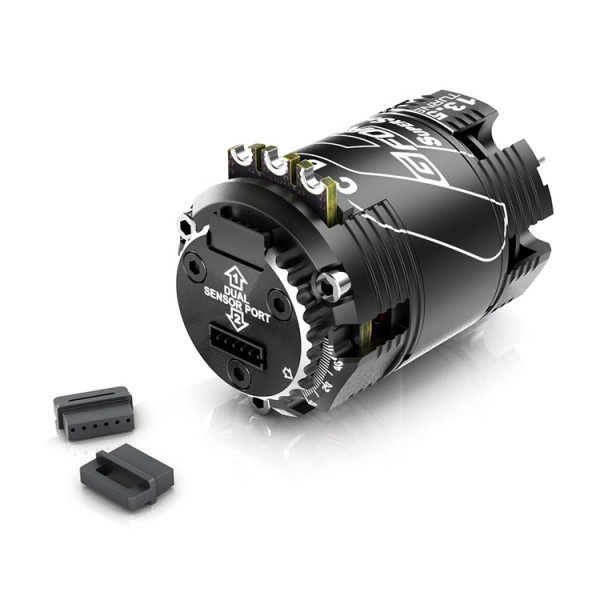

GForce Supersonic 13.5 T Brushless Motor
GF-G0008
13.5 T
Aucun point de fidélité pour ce produit car il y a déjà une réduction.
Catégories
- Train (1/22.5 scale)
- Car Kits
- Car Parts
- ARC
- ARC A10-25 Spare Parts
- ARC A10-25 Option Parts
- ARC A10-23 Spare Parts
- ARC A10-23 Option Parts
- ARC A10 Spare Parts
- ARC A10 Option Parts
- ARC A10MF-24 Spare Parts
- ARC A10MF-24 Option Parts
- ARC A10MF Spare Parts
- ARC A10MF Option Parts
- ARC R12FF Spare Parts
- ARC R12FF Option Parts
- ARC R12.1 Spare Parts
- ARC R12.1 Option Parts
- ARC R12 Spare Parts
- ARC R12 Option Parts
- ARC R11 Spare Parts
- ARC R11 Option Parts
- IRIS
- YOKOMO
- VBC Racing
- Spec-R
- Vigor, Arrowmax and Radtec
- XRAY
- Screw accessories
- Ball Bearings
- Spring
- Other
- ARC
- Car Tires / Additive / Warmer
- Car Bodies
- Car Lexan Color
- Car ESC
- Brushless Motor, Fan
- Battery
- Charger
- Transponder
- Servo
- Setup and Tools
- Spur Gear and Pinion Gear
- Oil and Grease
- Accessories
- Storage R/C
- Drift
- 3D Printing
Brushless Motor, FanGForce Supersonic 13.5 T Brushless Motor Agrandir
Features
Breakthrough the Blushless motor
- CNC Machined Billet T6 Aluminum Heatsink Can
- High Purity Copper Windings Maximizes Conductivity
- High Power Solder Tabs
- Removable/Replaceable Rotor
- Powerful Sintered Neodymium Magnet
- Precision Engineered for Maximum Energy Conversion
- Dual Sensor Port
- Incorporate Radial Fan in Front End Bell
- Adjustable Timing
- Compatible with any Sensored/ Sensorless ESC
- IFMAR, ROAR Compliance
Specifications
| Turns | Rotor (mm) | KV (RPM/VCLT) | Internal Resistance | Voltage | Watts (W) |
| 3.5T | 12.5*5(mm) | 9100 | 0.0026Ω | 7.4V | 600 |
| 4.5T | 12.5*5(mm) | 7620 | 0.0042Ω | 7.4V | 490 |
| 5.5T | 12.5*5(mm) | 6450 | 0.0061Ω | 7.4V | 430 |
| 6.5T | 12.5*5(mm) | 5350 | 0.0087Ω | 7.4V | 390 |
| 7.5T | 12.5*5(mm) | 4700 | 0.0104Ω | 7.4V | 360 |
| 8.5T | 12.5*5(mm) | 4100 | 0.0138Ω | 11.1V | 340 |
| 10.5T | 12.5*5(mm) | 3450 | 0.0208Ω | 11.1V | 250 |
| 13.5T | 12.5*5(mm) | 2860 | 0.0331Ω | 11.1V | 190 |
| 17.5T | 12.5*7.2(mm) | 2200 | 0.0514Ω | 11.1V | 130 |
| 21.5T | 12.5*7.2(mm) | 1760 | 0.0875Ω | 11.1V | 100 |
Bearing Size
| F bearing size | R bearing size | |
|---|---|---|
| Super Sonic | 685ZZ(￠5*￠11*5mm) | R2ZZ(￠3.175*￠9.525*3.967mm) |
| Super Velocity | R2ZZ(￠3.175*￠9.525*3.967mm) | R2ZZ(￠3.175*￠9.525*3.967mm) |
| Super Fast | R2ZZ(￠3.175*￠9.525*3.967mm) | R2ZZ(￠3.175*￠9.525*3.967mm) |
| Fujin | R2ZZ(￠3.175*￠9.525*3.967mm) | R2ZZ(￠3.175*￠9.525*3.967mm) |
| Raijin | R2ZZ(￠3.175*￠9.525*3.967mm) | R2ZZ(￠3.175*￠9.525*3.967mm) |
-
- CHF 179.90 CHF 159.90
